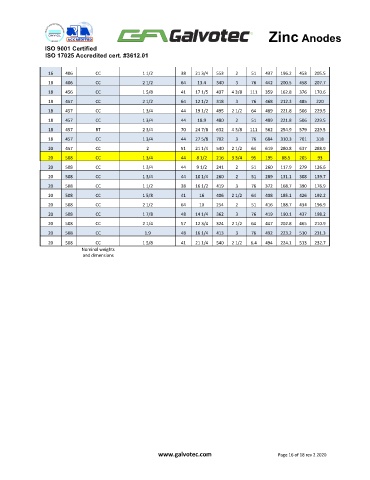

Page 16 - Zinc Anodes 2020R2
P. 16
Zinc Anodes
ISO 9001 Certified
ISO 17025 Accredited cert. #3612.01
16 406 CC 1 1/2 38 21 3/4 553 2 51 437 196.2 453 205.5
18 406 CC 2 1/2 64 13.4 340 3 76 442 200.5 458 207.7
18 456 CC 1 5/8 41 17 1/5 437 4 3/8 111 359 162.8 376 170.6
18 457 CC 2 1/2 64 12 1/2 318 3 76 468 212.3 485 220
18 457 CC 1 3/4 44 19 1/2 495 2 1/2 64 489 221.8 506 229.5
18 457 CC 1 3/4 44 18.9 480 2 51 489 221.8 506 229.5
18 457 RT 2 3/4 70 24 7/8 632 4 3/8 111 562 254.9 579 229.5
18 457 CC 1 3/4 44 27 5/8 702 3 76 684 310.3 701 318
20 457 CC 2 51 21 1/4 540 2 1/2 64 619 280.8 637 288.9
20 508 CC 1 3/4 44 8 1/2 216 3 3/4 95 195 88.5 205 93
20 508 CC 1 3/4 44 9 1/2 241 2 51 260 117.9 279 126.6
20 508 CC 1 3/4 44 10 1/4 260 2 51 289 131.1 308 139.7
20 508 CC 1 1/2 38 16 1/2 419 3 76 372 168.7 390 176.9
20 508 CC 1 5/8 41 16 406 2 1/2 64 408 185.1 426 192.2
20 508 CC 2 1/2 64 10 254 2 51 416 188.7 434 196.9
20 508 CC 1 7/8 48 14 1/4 362 3 76 419 190.1 437 198.2
20 508 CC 2 1/4 57 12 3/4 324 2 1/2 64 447 202.8 465 210.9
20 508 CC 1.9 48 16 1/4 413 3 76 492 223.2 510 231.3
20 508 CC 1 5/8 41 21 1/4 540 2 1/2 6.4 494 224.1 513 232.7
Nominal weights
and dimensions
www.galvotec.com Page 16 of 18 rev 2 2020
