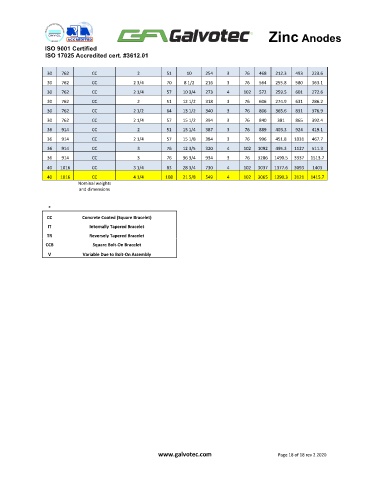

Page 18 - Zinc Anodes 2020R2

Zinc Anodes

ISO 9001 Certified
ISO 17025 Accredited cert. #3612.01

30 762 CC 2 51 10 254 3 76 468 212.3 493 223.6
30 762 CC 2 3/4 70 8 1/2 216 3 76 564 255.8 580 363.1
30 762 CC 2 1/4 57 10 3/4 273 4 102 572 259.5 601 272.6
30 762 CC 2 51 12 1/2 318 3 76 606 274.9 631 286.2
30 762 CC 2 1/2 64 13 1/2 340 3 76 806 365.6 831 376.9
30 762 CC 2 1/4 57 15 1/2 394 3 76 840 381 865 392.4
36 914 CC 2 51 15 1/4 387 3 76 889 403.3 924 419.1
36 914 CC 2 1/4 57 15 1/8 384 3 76 996 451.8 1031 467.7
36 914 CC 3 76 12 3/5 320 4 102 1092 495.3 1127 511.3
36 914 CC 3 76 36 3/4 934 3 76 3286 1490.5 3337 1513.7
40 1016 CC 3 1/4 83 28 3/4 730 4 102 3037 1377.6 3093 1403
40 1016 CC 4 1/4 108 21 5/8 549 4 102 3065 1390.3 3121 1415.7
Nominal weights
and dimensions

*
CC Concrete Coated (Square Bracelet)
IT Internally Tapered Bracelet
TR Reversely Tapered Bracelet
CCB Square Bolt-On Bracelet
V Variable Due to Bolt-On Assembly
