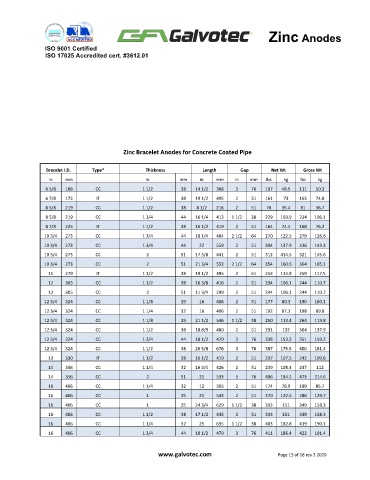

Page 15 - Zinc Anodes 2020R2

Zinc Anodes

ISO 9001 Certified
ISO 17025 Accredited cert. #3612.01

Zinc Bracelet Anodes for Concrete Coated Pipe

Bracelet I.D. Type* Thickness Length Gap Net Wt Gross Wt
In mm in mm in mm in mm lbs kg lbs kg
6 5/8 168 CC 1 1/2 38 14 1/2 368 3 76 107 48.5 111 50.3
6 7/8 175 IT 1 1/2 38 19 1/2 495 2 51 161 73 165 74.8
8 5/8 219 CC 1 1/2 38 8 1/2 216 2 51 78 35.4 81 36.7
8 5/8 219 CC 1 3/4 44 16 1/4 413 1 1/2 38 229 103.9 234 106.1
8 7/8 225 IT 1 1/2 38 16 1/2 419 2 51 164 74.4 168 76.2
10 3/4 273 CC 1 3/4 44 18 1/4 464 2 1/2 64 270 122.5 279 126.6
10 3/4 273 CC 1 3/4 44 22 559 2 51 304 137.9 316 143.3
10 3/4 273 CC 2 51 17 3/8 441 2 51 312 414.5 321 145.6
10 3/4 273 CC 2 51 21 3/4 553 2 1/2 64 354 160.6 364 165.1
11 279 IT 1 1/2 38 19 1/2 495 2 51 253 114.8 259 117.5
12 305 CC 1 1/2 38 16 3/8 416 2 51 234 106.1 244 110.7
12 305 CC 2 51 11 3/4 299 2 51 234 106.1 244 110.7
12 3/4 324 CC 1 1/8 29 16 406 2 51 177 80.3 190 160.1
12 3/4 324 CC 1 1/4 32 16 406 2 51 192 87.1 198 89.8
12 3/4 324 CC 1 1/8 29 21 1/2 546 1 1/2 38 250 113.4 264 119.8
12 3/4 324 CC 1 1/2 38 18 8/9 480 2 51 291 132 304 137.9
12 3/4 324 CC 1 3/4 44 18 1/2 470 3 76 338 153.3 351 159.2
12 3/4 324 CC 1 1/2 38 26 5/8 676 3 76 387 175.5 400 181.4
13 330 IT 1 1/2 38 16 1/2 419 2 51 237 107.5 242 109.8
14 356 CC 1 1/4 32 16 3/4 426 2 51 239 108.4 247 112
14 356 CC 2 51 21 533 3 76 406 184.2 473 214.6
16 406 CC 1 1/4 32 12 305 2 51 174 78.9 189 85.7
16 406 CC 1 25 21 533 2 51 270 122.5 286 129.7
16 406 CC 1 25 24 3/4 629 1 1/2 38 333 151 349 158.3
16 406 CC 1 1/2 38 17 1/2 445 2 51 333 151 349 158.3
16 406 CC 1 1/4 32 25 635 1 1/2 38 403 182.8 419 190.1
16 406 CC 1 3/4 44 18 1/2 470 3 76 411 186.4 422 191.4
