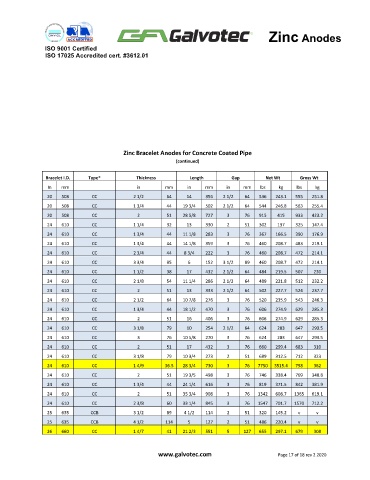

Page 17 - Zinc Anodes 2020R2
P. 17
Zinc Anodes
ISO 9001 Certified
ISO 17025 Accredited cert. #3612.01
Zinc Bracelet Anodes for Concrete Coated Pipe
(continued)
Bracelet I.D. Type* Thickness Length Gap Net Wt Gross Wt
In mm in mm in mm in mm lbs kg lbs kg
20 508 CC 2 1/2 64 14 356 2 1/2 64 536 243.1 555 251.8
20 508 CC 1 3/4 44 19 3/4 502 2 1/2 64 544 246.8 563 255.4
20 508 CC 2 51 28 5/8 727 3 76 915 415 933 423.2
24 610 CC 1 1/4 32 13 330 2 51 302 137 325 147.4
24 610 CC 1 3/4 44 11 1/8 283 3 76 367 166.5 390 176.9
24 610 CC 1 3/4 44 14 1/8 359 3 76 460 208.7 483 219.1
24 610 CC 2 3/4 44 8 3/4 222 3 76 460 208.7 472 214.1
24 610 CC 3 3/4 95 6 152 3 1/2 89 460 208.7 472 214.1
24 610 CC 1 1/2 38 17 432 2 1/2 64 484 219.5 507 230
24 610 CC 2 1/8 54 11 1/4 286 2 1/2 64 489 221.8 512 232.2
24 610 CC 2 51 13 333 2 1/2 64 502 227.7 524 237.7
24 610 CC 2 1/2 64 10 7/8 276 3 76 520 235.9 543 246.3
24 610 CC 1 3/4 44 18 1/2 470 3 76 606 274.9 629 285.3
24 610 CC 2 51 16 406 3 76 606 274.9 629 285.3
24 610 CC 3 1/8 79 10 254 2 1/2 64 624 283 647 293.5
24 610 CC 3 76 10 5/8 270 3 76 624 283 647 293.5
24 610 CC 2 51 17 432 3 76 660 299.4 683 310
24 610 CC 3 1/8 79 10 3/4 273 2 51 689 312.5 712 323
24 610 CC 1 4/9 36.5 28 3/4 730 3 76 7750 3515.4 798 362
24 610 CC 2 51 19 3/5 498 3 76 746 338.4 769 348.8
24 610 CC 1 3/4 44 24 1/4 616 3 76 819 371.5 842 381.9
24 610 CC 2 51 35 3/4 908 3 76 1342 608.7 1365 619.1
24 610 CC 2 3/8 60 33 1/4 845 3 76 1547 701.7 1570 712.2
25 635 CCB 3 1/2 89 4 1/2 114 2 51 320 145.2 v v
25 635 CCB 4 1/2 114 5 127 2 51 486 220.4 v v
26 660 CC 1 4/7 41 21 2/3 551 5 127 655 297.1 679 308
