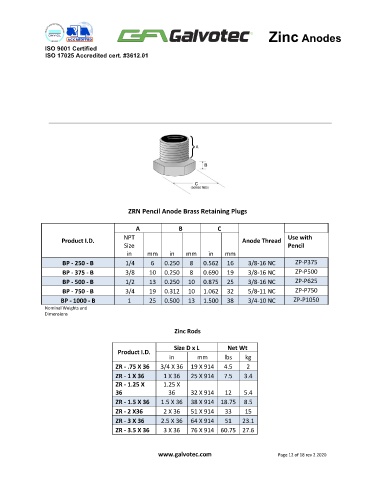

Page 12 - Zinc Anodes 2020R2

Zinc Anodes

ISO 9001 Certified
ISO 17025 Accredited cert. #3612.01

ZRN Pencil Anode Brass Retaining Plugs

A B C

Product I.D. NPT Anode Thread Use with
Size Pencil
in mm in mm in mm
BP - 250 - B 1/4 6 0.250 8 0.562 16 3/8-16 NC ZP-P375
BP - 375 - B 3/8 10 0.250 8 0.690 19 3/8-16 NC ZP-P500
BP - 500 - B 1/2 13 0.250 10 0.875 25 3/8-16 NC ZP-P625
BP - 750 - B 3/4 19 0.312 10 1.062 32 5/8-11 NC ZP-P750
BP - 1000 - B 1 25 0.500 13 1.500 38 3/4-10 NC ZP-P1050
Nominal Weights and
Dimensions

Zinc Rods

Size D x L Net Wt
Product I.D.
in mm lbs kg
ZR - .75 X 36 3/4 X 36 19 X 914 4.5 2
ZR - 1 X 36 1 X 36 25 X 914 7.5 3.4
ZR - 1.25 X 1.25 X
36 36 32 X 914 12 5.4
ZR - 1.5 X 36 1.5 X 36 38 X 914 18.75 8.5
ZR - 2 X36 2 X 36 51 X 914 33 15
ZR - 3 X 36 2.5 X 36 64 X 914 51 23.1
ZR - 3.5 X 36 3 X 36 76 X 914 60.75 27.6
