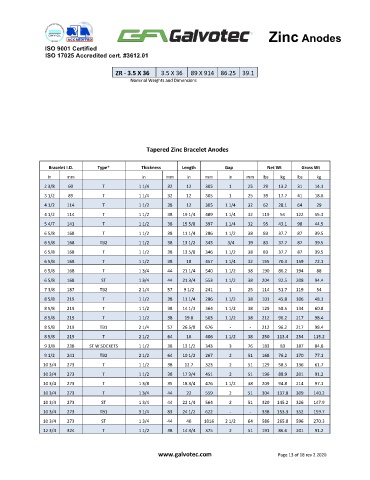

Page 13 - Zinc Anodes 2020R2
P. 13
Zinc Anodes
ISO 9001 Certified
ISO 17025 Accredited cert. #3612.01
ZR - 3.5 X 36 3.5 X 36 89 X 914 86.25 39.1
Nominal Weights and Dimensions
Tapered Zinc Bracelet Anodes
Bracelet I.D. Type* Thickness Length Gap Net Wt Gross Wt
In mm in mm in mm in mm lbs kg lbs kg
2 3/8 60 T 1 1/4 32 12 305 1 25 29 13.2 31 14.1
3 1/2 89 T 1 1/4 32 12 305 1 25 39 17.7 41 18.6
4 1/2 114 T 1 1/2 38 12 305 1 1/4 32 62 28.1 64 29
4 1/2 114 T 1 1/2 38 19 1/4 489 1 1/4 32 119 54 122 55.3
5 4/7 141 T 1 1/2 38 15 5/8 397 1 1/4 32 95 43.1 98 44.5
6 5/8 168 T 1 1/2 38 11 1/4 286 1 1/2 38 83 37.7 87 39.5
6 5/8 168 TB2 1 1/2 38 13 1/2 343 3/4 19 83 37.7 87 39.5
6 5/8 168 T 1 1/2 38 13 5/8 346 1 1/2 38 83 37.7 87 39.5
6 5/8 168 T 1 1/2 38 18 457 1 1/4 32 155 70.3 159 72.1
6 5/8 168 T 1 3/4 44 21 1/4 540 1 1/2 38 190 86.2 194 88
6 5/8 168 ST 1 3/4 44 21 3/4 553 1 1/2 38 204 92.5 208 94.4
7 3/8 187 TB2 2 1/4 57 9 1/2 241 1 25 114 51.7 119 54
8 5/8 219 T 1 1/2 38 11 1/4 286 1 1/2 38 101 45.8 106 48.1
8 5/8 219 T 1 1/2 38 14 1/3 364 1 1/2 38 129 58.5 134 60.8
8 5/8 219 T 1 1/2 38 19.8 503 1 1/2 38 212 96.2 217 98.4
8 5/8 219 TB1 2 1/4 57 26 5/8 676 - - 212 96.2 217 98.4
8 5/8 219 T 2 1/2 64 16 406 1 1/2 38 250 113.4 254 115.2
9 3/8 238 ST W SOCKETS 1 1/2 38 13 1/2 343 3 76 183 83 187 84.8
9 1/2 241 TB2 2 1/2 64 10 1/2 267 2 51 168 76.2 170 77.1
10 3/4 273 T 1 1/2 38 12.7 323 2 51 129 58.5 136 61.7
10 3/4 273 T 1 1/2 38 17 3/4 451 2 51 196 88.9 201 91.2
10 3/4 273 T 1 3/8 35 18 3/4 476 1 1/2 38 209 94.8 214 97.1
10 3/4 273 T 1 3/4 44 22 559 2 51 304 137.8 309 140.2
10 3/4 273 ST 1 3/4 44 22 1/4 564 2 51 320 145.2 326 147.9
10 3/4 273 TB1 3 1/4 83 24 1/2 622 - - 338 153.3 352 159.7
10 3/4 273 ST 1 3/4 44 40 1016 2 1/2 64 586 265.8 596 270.3
12 3/4 324 T 1 1/2 38 14 3/4 375 2 51 191 86.6 201 91.2
