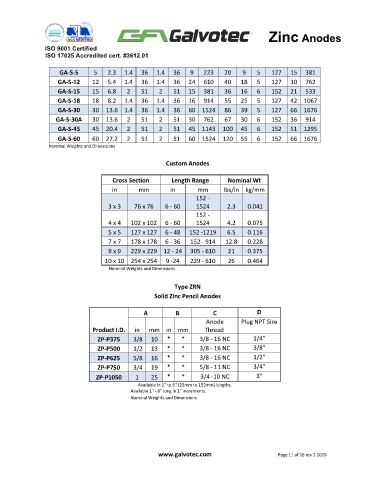

Page 11 - Zinc Anodes 2020R2

Zinc Anodes

ISO 9001 Certified
ISO 17025 Accredited cert. #3612.01

GA-S-5 5 2.3 1.4 36 1.4 36 9 223 20 9 5 127 15 381
GA-S-12 12 5.4 1.4 36 1.4 36 24 610 40 18 5 127 30 762
GA-S-15 15 6.8 2 51 2 51 15 381 36 16 6 152 21 533
GA-S-18 18 8.2 1.4 36 1.4 36 16 914 55 25 5 127 42 1067
GA-S-30 30 13.6 1.4 36 1.4 36 60 1524 86 39 5 127 66 1676
GA-S-30A 30 13.6 2 51 2 51 30 762 67 30 6 152 36 914
GA-S-45 45 20.4 2 51 2 51 45 1143 100 45 6 152 51 1295
GA-S-60 60 27.2 2 51 2 51 60 1524 120 55 6 152 66 1676
Nominal Weights and Dimensions

Custom Anodes

Cross Section Length Range Nominal Wt
in mm in mm lbs/in kg/mm
152 -
3 x 3 76 x 76 6 - 60 1524 2.3 0.041
152 -
4 x 4 102 x 102 6 - 60 1524 4.2 0.075
5 x 5 127 x 127 6 - 48 152 -1219 6.5 0.116
7 x 7 178 x 178 6 - 36 152 - 914 12.8 0.228
9 x 9 229 x 229 12 - 24 305 - 610 21 0.375
10 x 10 254 x 254 9 -24 229 - 610 26 0.464
Nominal Weights and Dimensions

Type ZRN
Solid Zinc Pencil Anodes

A B C D
Anode Plug NPT Size
Product I.D. in mm in mm Thread
ZP-P375 3/8 10 * * 3/8 - 16 NC 1/4"
ZP-P500 1/2 13 * * 3/8 - 16 NC 3/8"
ZP-P625 5/8 16 * * 3/8 - 16 NC 1/2"
ZP-P750 3/4 19 * * 5/8 - 11 NC 3/4"
ZP-P1050 1 25 * * 3/4 -10 NC 1"
Available in 1" to 6" (25mm to 152mm) lengths.
Available 1" - 6" long in 1" increments.
Nominal Weights and Dimensions
