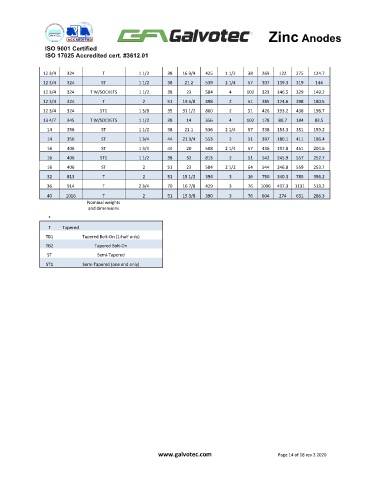

Page 14 - Zinc Anodes 2020R2

Zinc Anodes

ISO 9001 Certified
ISO 17025 Accredited cert. #3612.01

12 3/4 324 T 1 1/2 38 16 3/4 425 1 1/2 38 269 122 275 124.7
12 3/4 324 ST 1 1/2 38 21.2 539 2 1/4 57 307 139.3 319 144
12 3/4 324 T W/SOCKETS 1 1/2 38 23 584 4 102 323 146.5 329 149.2
12 3/4 324 T 2 51 19 5/8 498 2 51 385 174.6 398 180.5
12 3/4 324 ST1 1 3/8 35 31 1/2 800 2 51 426 193.2 438 198.7
13 4/7 345 T W/SOCKETS 1 1/2 38 14 356 4 102 178 80.7 184 83.5
14 356 ST 1 1/2 38 21.1 536 2 1/4 57 338 153.3 351 159.2
14 356 ST 1 3/4 44 21 3/4 553 2 51 397 180.1 411 186.4
16 406 ST 1 3/4 44 20 508 2 1/4 57 436 197.8 451 204.6
16 406 ST1 1 1/2 38 32 813 2 51 542 245.9 557 252.7
16 406 ST 2 51 23 584 2 1/2 64 544 246.8 559 253.7
32 813 T 2 51 15 1/2 394 3 16 750 340.3 785 356.2
36 914 T 2 3/4 70 16 7/8 429 3 76 1096 497.3 1131 513.2
40 1016 T 2 51 15 3/8 390 3 76 604 274 631 286.3
Nominal weights
and dimensions
*
T Tapered
TB1 Tapered Bolt-On (1-half only)
TB2 Tapered Bolt-On
ST Semi-Tapered
ST1 Semi-Tapered (one end only)

www.galvotec.com Page 14 of 18 rev 2 2020
