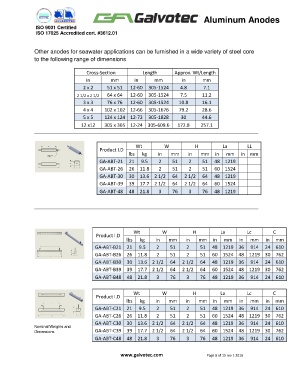

Page 8 - Alumin Anodes

Aluminum Anodes

ISO 9001 Certified
ISO 17025 Accredited cert. #3612.01

Other anodes for seawater applications can be furnished in a wide variety of steel core
to the following range of dimensions

Cross-Section Length Approx. Wt/Length
in mm in mm in mm
2 x 2 51 x 51 12-60 305-1524 4.8 7.1
2 1/2 x 2 1/2 64 x 64 12-60 305-1524 7.5 11.2
3 x 3 76 x 76 12-60 305-1524 10.8 16.1
4 x 4 102 x 102 12-66 305-1676 79.2 28.6
5 x 5 124 x 124 12-72 305-1828 30 44.6
12 x12 305 x 305 12-24 305-609.6 172.8 257.1

Wt W H La LL
Product I.D
lbs kg in mm in mm in mm in mm
GA-ABT-21 21 9.5 2 51 2 51 48 1219
GA-ABT-26 26 11.8 2 51 2 51 60 1524
GA-ABT-30 30 13.6 2 1/2 64 2 1/2 64 48 1219
GA-ABT-39 39 17.7 2 1/2 64 2 1/2 64 60 1524

GA-ABT-48 48 21.8 3 76 3 76 48 1219

Wt W H La Lc C
Product I.D
lbs kg in mm in mm in mm in mm in mm
GA-ABT-B21 21 9.5 2 51 2 51 48 1219 36 914 24 610

GA-ABT-B26 26 11.8 2 51 2 51 60 1524 48 1219 30 762
GA-ABT-B30 30 13.6 2 1/2 64 2 1/2 64 48 1219 36 914 24 610
GA-ABT-B39 39 17.7 2 1/2 64 2 1/2 64 60 1524 48 1219 30 762
GA-ABT-B48 48 21.8 3 76 3 76 48 1219 36 914 24 610

Wt W H La Lc C
Product I.D
lbs kg in mm in mm in mm in mm in mm
GA-ABT-C21 21 9.5 2 51 2 51 48 1219 36 914 24 610
GA-ABT-C26 26 11.8 2 51 2 51 60 1524 48 1219 30 762
GA-ABT-C30 30 13.6 2 1/2 64 2 1/2 64 48 1219 36 914 24 610
Nominal Weights and
Dimensions GA-ABT-C39 39 17.7 2 1/2 64 2 1/2 64 60 1524 48 1219 30 762
GA-ABT-C48 48 21.8 3 76 3 76 48 1219 36 914 24 610
