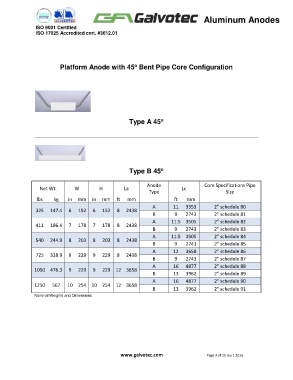

Platform Anode with 45 Bent Pipe Core Configuration
o

Type A 45 o

Type B 45
o

Anode Core Specifications Pipe
Net Wt. W H La Lc
Type Size
lbs kg in mm in mm ft mm ft mm
A 11 3353 2" schedule 80
325 147.4 6 152 6 152 8 2438
B 9 2743 2" schedule 81
A 11.5 3505 2" schedule 82
411 186.4 7 178 7 178 8 2438
B 9 2743 2" schedule 83
A 11.5 3505 2" schedule 84
540 244.9 8 203 8 203 8 2438
B 9 2743 2" schedule 85
A 12 3658 2" schedule 86
725 328.9 9 229 9 229 8 2438
B 9 2743 2" schedule 87
A 16 4877 2" schedule 88
1050 476.3 9 229 9 229 12 3658
B 13 3962 2" schedule 89
A 16 4877 2" schedule 90
1250 567 10 254 10 254 12 3658
B 13 3962 2" schedule 91
Nominal Weights and Dimensions
