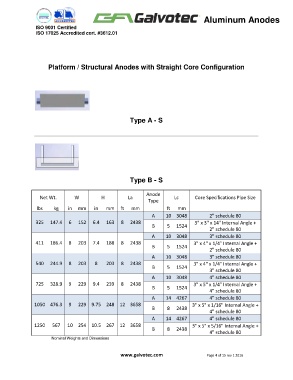

Aluminum Anodes

ISO 9001 Certified
ISO 17025 Accredited cert. #3612.01

Platform / Structural Anodes with Straight Core Configuration

Type A - S

Type B - S

Anode
Net Wt. W H La Lc Core Specifications Pipe Size
Type
lbs kg in mm in mm ft mm ft mm
A 10 3048 2" schedule 80
325 147.4 6 152 6.4 163 8 2438 3" x 3" x 14" Internal Angle +
B 5 1524
2" schedule 80
A 10 3048 3" schedule 80
411 186.4 8 203 7.4 188 8 2438 3" x 4" x 1/4" Internal Angle +
B 5 1524
2" schedule 80
A 10 3048 3" schedule 80
540 244.9 8 203 8 203 8 2438 3" x 4" x 1/4" Internal Angle +
B 5 1524
3" schedule 80
A 10 3048 4" schedule 80
725 328.9 9 229 9.4 239 8 2438 3" x 5" x 1/4" Internal Angle +
B 5 1524
4" schedule 80
A 14 4267 4" schedule 80
1050 476.3 9 229 9.75 248 12 3658 3" x 5" x 1/16" Internal Angle +
B 8 2438
4" schedule 80
A 14 4267 4" schedule 80
1250 567 10 254 10.5 267 12 3658 3" x 5" x 5/16" Internal Angle +
B 8 2438 4" schedule 80
Nominal Weights and Dimensions
