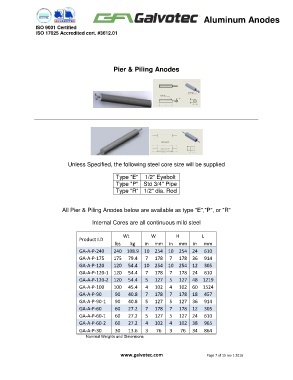

Page 7 - Alumin Anodes

Aluminum Anodes

ISO 9001 Certified
ISO 17025 Accredited cert. #3612.01

Pier & Piling Anodes

Unless Specified, the following steel core size will be supplied

Type "E" 1/2" Eyebolt
Type "P" Std 3/4" Pipe
Type "R" 1/2" dia. Rod

All Pier & Piling Anodes below are available as type "E","P", or "R"

Internal Cores are all continuous mild steel

Wt W H L
Product I.D
lbs kg in mm in mm in mm
GA-A-P-240 240 108.9 10 254 10 254 24 610
GA-A-P-175 175 79.4 7 178 7 178 36 914
GA-A-P-120 120 54.4 10 254 10 254 12 305
GA-A-P-120-1 120 54.4 7 178 7 178 24 610
GA-A-P-120-2 120 54.4 5 127 5 127 48 1219
GA-A-P-100 100 45.4 4 102 4 102 60 1524
GA-A-P-90 90 40.8 7 178 7 178 18 457
GA-A-P-90-1 90 40.8 5 127 5 127 36 914
GA-A-P-60 60 27.2 7 178 7 178 12 305
GA-A-P-60-1 60 27.2 5 127 5 127 24 610
GA-A-P-60-2 60 27.2 4 102 4 102 38 965
GA-A-P-30 30 13.6 3 76 3 76 34 864
Nominal Weights and Dimensions
