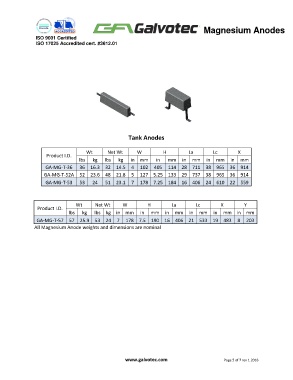

Page 5 - Magnesium Anodes

Magnesium Anodes

ISO 9001 Certified
ISO 17025 Accredited cert. #3612.01

Tank Anodes

Wt Net Wt W H La Lc X
Product I.D.
lbs kg lbs kg in mm in mm in mm in mm in mm
GA-MG-T-36 36 16.3 32 14.5 4 102 405 114 28 711 38 965 36 914
GA-MG-T-52A 52 23.6 48 21.8 5 127 5.25 133 29 737 38 965 36 914

GA-MG-T-53 53 24 51 23.1 7 178 7.25 184 16 406 24 610 22 559

Wt Net Wt W H La Lc X Y
Product I.D.
lbs kg lbs kg in mm in mm in mm in mm in mm in mm
GA-MG-T-57 57 25.9 53 24 7 178 7.5 190 16 406 21 533 19 483 8 203
All Magnesium Anode weights and dimensions are nominal

www.galvotec.com Page 5 of 7 rev 1 2016
