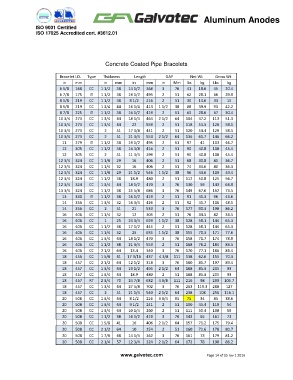

Page 14 - Alumin Anodes

Aluminum Anodes

ISO 9001 Certified
ISO 17025 Accredited cert. #3612.01

Concrete Coated Pipe Bracelets

Bracelet I.D. Type Thickness Length GAP Net Wt Gross Wt
in mm in mm in mm in Mm lbs kg Lbs kg
6 5/8 168 CC 1 1/2 38 14 1/2 368 3 76 41 18.6 45 20.4
6 7/8 175 IT 1 1/2 38 19 1/2 495 2 51 62 28.1 66 29.9
8 5/8 219 CC 1 1/2 38 8 1/2 216 2 51 30 13.6 33 15
8 5/8 219 CC 1 3/4 44 16 1/4 413 1 1/2 38 88 39.9 93 42.2
8 7/8 225 IT 1 1/2 38 16 1/2 419 2 51 63 28.6 67 30.4
10 3/4 273 CC 1 3/4 44 18 1/4 464 2 1/2 64 104 47.2 113 51.3
10 3/4 273 CC 1 3/4 44 22 559 2 51 118 53.5 128 58.1
10 3/4 273 CC 2 51 17 3/8 441 2 51 120 54.4 129 58.5
10 3/4 273 CC 2 51 21 3/4 553 2 1/2 64 136 61.7 146 66.2
11 279 IT 1 1/2 38 19 1/2 495 2 51 97 41 103 46.7
12 305 CC 1 1/2 38 16 3/8 416 2 51 90 40.8 100 45.4
12 305 CC 2 51 11 3/4 299 2 51 90 40.8 100 45.4
12 3/4 324 CC 1 1/8 29 16 406 2 51 68 30.8 81 36.7
12 3/4 324 CC 1 1/4 32 16 406 2 51 74 33.6 80 36.3
12 3/4 324 CC 1 1/8 29 21 1/2 546 1 1/2 38 96 43.6 109 49.4
12 3/4 324 CC 1 1/2 38 18.9 480 2 51 112 50.8 125 56.7
12 3/4 324 CC 1 3/4 44 18 1/2 470 3 76 130 59 143 64.9
13 3/4 324 CC 1 1/2 38 25 5/8 686 3 76 149 67.6 162 73.5
13 330 IT 1 1/2 38 16 1/2 419 2 51 91 41.3 96 43.6
14 356 CC 1 3/4 32 16 3/4 426 2 51 92 41.7 106 48.1
14 356 CC 2 51 21 533 3 76 177 90.3 190 86.2
16 406 CC 1 1/4 32 12 305 2 51 76 34.5 82 34.5
16 406 CC 1 25 24 3/4 629 1 1/2 38 128 58.1 144 65.3
16 406 CC 1 1/2 38 17 1/2 445 2 51 128 58.1 144 65.3
16 406 CC 1 1/4 32 25 635 1 1/2 38 155 70.3 171 77.6
16 406 CC 1 3/4 44 18 1/2 470 3 76 158 71.7 174 78.9
16 406 CC 1 1/2 38 21 3/4 553 2 51 168 76.2 184 83.5
16 406 CC 2 1/2 64 13.4 340 3 76 170 77.1 186 84.4
18 456 CC 1 5/8 41 17 3/16 437 4 3/8 111 138 62.6 155 70.3
18 457 CC 2 1/2 64 12 1/2 318 3 76 180 81.7 197 89.4
18 457 CC 1 3/4 44 19 1/2 495 2 1/2 64 188 85.3 205 93
18 457 CC 1 3/4 44 18.9 480 2 51 188 85.3 205 93
18 457 RT 2 3/4 70 24 7/8 632 4 3/8 111 216 98 233 105.7
18 457 CC 1 3/4 44 27 5/8 702 3 76 263 119.3 280 127
18 457 CC 2 51 21 1/4 540 2 1/2 64 238 108 256 116.1
20 508 CC 1 3/4 44 8 1/2 216 3 3/4 95 75 34 85 38.6
20 508 CC 1 3/4 44 9 1/2 241 2 51 100 45.4 119 54
20 508 CC 1 3/4 44 10 1/4 260 2 51 111 50.4 130 59
20 508 CC 1 1/2 38 16 1/2 419 3 76 143 65 161 73
20 508 CC 1 5/8 41 16 406 2 1/2 64 157 71.2 175 79.4
20 508 CC 2 1/2 64 10 254 2 51 160 72.6 178 80.7
20 508 CC 1 7/8 48 14 1/4 362 3 76 161 73 179 81.2
20 508 CC 2 1/4 57 12 3/4 324 2 1/2 64 172 78 190 86.2
